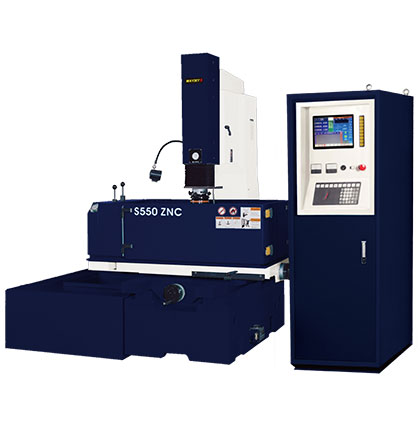

• S-550ZNC
  • S-550CNC

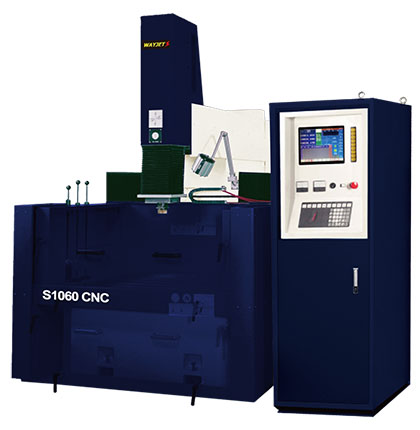

  • S-1060CNC

  • Table is hardended.
  • Constructed of high quality cast iron, quench treated.
  • X, Y-axis high precision ballscrews.
  • 32 bits industrial grade computer.
  • Fast response MOSFET machining circuits.
  • Auto fire extinguisher, fire sensor, arcing sensor, dielectric level & temperature sensor are standard functions.
  • Interchangeable insert-board design.
  • Clearly identified numbers for maximum convenience of maintenance.
  • Momorized with 90 sets of teach-in parameters.
  • Choice of sparking or non-sparking for Z-axis mold alignment
  • Low electrode wear, high efficiency, and extremely fine machining surface.
  • 10 steps automatic parameters change for Z-axis.
  • 3 axes digital readout with 0.005 resolution included.
  • Automatic home point reset on Z-axis.
  • Available on-link with orbit-cut system to enchance powerful functions.
  • Employs the latest single screen window conversational operations.
    		•
  • 100 sets of work files can be edited.
  • 14" VGA color monitor.
  • Intelligent arcing auto adjustment function: Intelligent arcing sensor & adjust parameters to ensure best performance.
    		•
  • Digital dual voltage (high/low voltage) currents being synchronously discharged to ensure faster metal removal rate, low electrode wear and uniform surface finish.
  • New "FUZZY" edition function: Just input: (1 )material of electrode & workpiece (2) machining depth. (3)Maximum current &(4)Minimum current, then "FUZZY" will auto set the machining parameters for each step form roughing to final finishing.
    		•
    ITEM \ MODEL UNIT S550ZNC
    Work tank (L x W x H) mm(inch) 1,170(46) / 690(27) / 425(17)
    Work table (L x W) mm(inch) 800(32) / 450(18)
    Table travel (X) mm(inch) 500(20)
    Table travel (Y) mm(inch) 400(16)
    Servo travel mm(inch) 200(8)
    Workhead tracel (Z2) mm(inch) 300(12)
    Distance between platen & table mm(inch) 240(9)~740(29)
    Max.electrode weight kgs 180
    Max.workpiece weight kgs 1,350
    Outside dmentions (L x W x H) mm(inch) 1,350(53) / 1,640(65) / 2,150(85)
    Weight kgs 1,850

    ITEM \ MODEL S550ZNC
    Capacity L 550
    Weight kg 200
    Outside dimensions(L x W x H) L
    W
    H    		 1200(47)
    1000(39)
    460(18)
    Outside dimensions kg

    POWER SUPPLE UNIT UNIT 30A 60A 90A 120A 180A
    Max. machining current A 30 60 90 120 180
    Max. power input KVA 3 4.5 8 12 18
    Max. removal ratio mm³/min 250 430 700 900 1500
    Min. electrode wear ratio % 0.15 0.15 0.15 0.15 0.15
    Best surface roughness um/Ra 0.18 0.18 0.18 0.18 0.18
    Outside dimensions mm
    (inch)     		820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)x2
    Weight KGS 300 300 350 380 680



  • High sensitive & fast response servo system.
  • Software hardware and mechanical limits switch provide comprehensive safety guards on the machine.
  • Table surface is heat treated to avoid scratching.
  • Constructed of rugged cast iron, quench treated for constant accuracy.
  • ODigital readouts with 0.001mm.
    		•
    ITEM \ MODEL UNIT S550CNC
    Work tank (L x W x H) mm(inch) 1200(47) / 690(27) / 425(17)
    Work table (L x W) mm(inch) 800(32) / 450(18)
    Table travel (X) mm(inch) 500(20)
    Table travel (Y) mm(inch) 400(16)
    Servo travel mm(inch) 350(14)
    Distance between platen & table mm(inch) 275(11)~675(22)
    Max.electrode weight kgs 220
    Max.workpiece weight kgs 1500
    Outside dmentions (L x W x H) mm(inch) 1,350(53) / 1,640(65) / 2350(93)
    Weight kgs 1900

    ITEM \ MODEL S550CNC
    Capacity L 550
    Weight kg 200
    Outside dimensions(L x W x H) L
    W
    H    		 1200(47)
    1000(39)
    460(18)
    Outside dimensions kg

    POWER SUPPLE UNIT UNIT 30A 60A 90A 120A 180A
    Max. machining current A 30 60 90 120 180
    Max. power input KVA 3 4.5 8 12 18
    Max. removal ratio mm³/min 250 430 700 900 1500
    Min. electrode wear ratio % 0.15 0.15 0.15 0.15 0.15
    Best surface roughness um/Ra 0.18 0.18 0.18 0.18 0.18
    Outside dimensions mm
    (inch)     		820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)x2
    Weight KGS 300 300 350 380 680



  • High sensitive & fast response servo system.
  • Software hardware and mechanical limits switch provide comprehensive safety guards on the machine.
  • Table surface is heat treated to avoid scratching.
  • Constructed of rugged cast iron, quench treated for constant accuracy.
  • Digital readouts with 0.001mm.
    		•
    ITEM \ MODEL UNIT S1060CNC
    Work tank (L x W x H) mm(inch) 1900(75) / 1100(43)/615(24)
    Work table (L x W) mm(inch) 1250(49) /750(30)
    Table travel (X) mm(inch) 1000(39)
    Table travel (Y) mm(inch) 600(24)
    Servo travel mm(inch) 500(20)
    Distance between platen & table mm(inch) 420(17)~920(36)
    Max.electrode weight kgs 350
    Max.workpiece weight kgs 2750
    Outside dmentions (L x W x H) mm(inch) 3400(134) /2600(102) / 3200(126)
    Weight kgs 5500

    ITEM \ MODEL S1060CNC
    Capacity L 1770
    Weight kg 500
    Outside dimensions(L x W x H) L
    W
    H    		 2300(91)
    1500(59)
    580(23)
    Outside dimensions kg

    POWER SUPPLE UNIT UNIT 30A 60A 90A 120A 180A
    Max. machining current A 30 60 90 120 180
    Max. power input KVA 3 4.5 8 12 18
    Max. removal ratio mm³/min 250 430 700 900 1500
    Min. electrode wear ratio % 0.15 0.15 0.15 0.15 0.15
    Best surface roughness um/Ra 0.18 0.18 0.18 0.18 0.18
    Outside dimensions mm
    (inch)     		820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)    		 820X620X1700
    (32X24X67)x2
    Weight KGS 300 300 350 380 680
